  • Grit SX - Titanium Gravel Bike

    In checkout notes please specify your preferred options for crankset, cassette, bar width, and stem length. We will respond with availablity or options along with expected lead time.
    Size
    Build Kit
    Grit SX - Titanium Gravel Bike

    Our goal in designing the Grit SX was to create a gravel bike that is ‘more’ in every area. Better handling, more clearance, easier service, more versatility, more fun. The Grit SX is a complete overhaul of its predecessor with a raft of new features and reworked geometry. We have loaded the SX with everything that we'd want from a gravel/adventure bike in a package that is both tighter and more focused than the original Grit.

    For a full breakdown of frame features and design please visit the frameset page here



    Features

    3AL-2.5V titanium TT,DT,CS,SS,ST
    6AL-4V titanium bottom bracket (T47 86mm)
    6AL-4V titanium headtube
    6AL-4V titanium dropouts
    Butted seatpost and downtube
    Hydroformed top tube with flattened underside
    Hydroformed double-ovalised downtube
    CNC chainstay yoke
    Braze-on front derailleur
    Toray T800 monocoque carbon flat-mount disc fork
    52/47mm fork offset
    Internal dynamo cable routing
    Double ovalised chainstays
    Tapered and lowered seatstays
    3x bidon mounts
    Clearance for 1L bottles

    ~

    Flat mount disc brakes
    12 x 100mm front and 12 x 142mm rear Thru-axle
    Tapered headtube 1 1/8” – 1 1/2"
    Integrated headset
    Di2/ETAP compatible
    3D CNC dropout
    Internal cable routing
    27.2mm seatpost
    Laser engraved logos
    Pannier rack mounts on fork and seat stays
    Full fender mounts front and rear
    Clearance for 50c(700c) and 2.2"(650b) tyres
    Brush Finish
    CNC engraved headtube
    Suitable for 700c and 650b wheelsets

    Build options

    1 - GRX RX820/822

    Bossi Grit SX frameset
    Shimano GRX RX820/822 groupset
    DT Swiss GR1600 wheelset
    Pro Discover stem
    Pro Discover bar
    Panaracer Gravel King SK tyres
    Pro Turnix saddle
    Burgh Matter Stealth bartape
    T47 bottom bracket
    Tubeless

    2 – Rival XPLR

    Bossi Grit SX frameset
    SRAM Rival AXS APLR groupset
    Bossi GR carbon gravel wheelset
    Zipp Service Course stem
    Zipp SC XPLR bars
    Pirelli Cinturato Gravel tyres
    Selle Repente Artax saddle
    Burgh Matter Stealth bartape
    T47 Bottom Bracket
    Tubeless

    3 – EKar

    Bossi Grit SX frameset
    Campagnolo Ekar groupset
    Bossi GR carbon gravel wheelset
    Easton EA70 stem
    Easton EC70 AX carbon gravel bars
    Teravail Washburn tyres
    Repente Artax carbon saddle
    Burgh Matter Stealth bartape
    T47 Bottom Bracket
    Tubeless

    4 - Force D2 Mullet

    Sram Force D2 Mullet groupset
    Bossi GR carbon wheelset w/ Hope Pro5 hubs
    Zipp SC SL XPLR bar
    Zipp SC stem
    Pirelli Cinturato Gravel tyres
    Repente Artax carbon saddle
    Burgh Matter Stealth bartape
    T47 Bottom Bracket
    Tubeless

    Book Your Free Consultation

    The build options outlined above serve to provide estimated costs only. We have access to a diverse selection of groupset and components. If you don't find the exact build you're looking for, feel free to reach out, and we'll be happy to provide a tailored quote. Whether you're seeking guidance on your custom build or have questions about our designs, use the link below to schedule a consultation. We're here to address all your inquiries.

    LEAD TIME


    We are fortunate to have stock of road and gravel groupsets from Shimano, SRAM, and Campagnolo. Groupset stock is limited, first come first serve. If your prefered components are in stock we can realistically build your bike in as little as two weeks.

    All our bikes are custom built meaning no two are ever the same. Assembling our bikes in house enables us to maintain our strict quality control for each and every build whilst delivering a personalised product for individual customer needs.

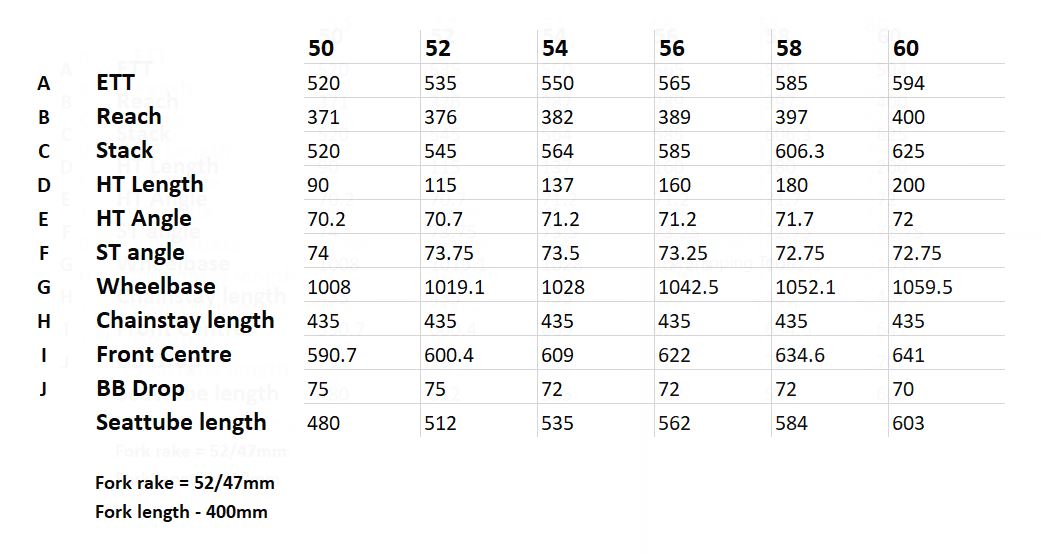

    Geometry

    How to order

    General: Please provide preferred groupset specification, bar and stem sizing, and component colours in checkout notes. We will get in touch to discuss the finer details.

    Custom Builds: Looking for something a little different? Get in touch with our team to discuss quotation for a custom build. We're more than happy to help you flesh out your dream machine.

    Lead time: General lead times are 2-4 weeks before dispatch. This is subject to component availability and may vary.

    Shipping

    Australia:
    Our titanium framesets are available to order online from us or through any of our authorised dealers. We offer free domestic shipping on all framesets and custom builds. To discuss build options, get in touch with us or speak to your nearest dealer.

    International:
    We offer free door to door duty paid shipping internationally through TNT/FEDEX and DHL. No additional fees and charges.
