  • Grit - Titanium Gravel Frameset

    Size
    Configuration

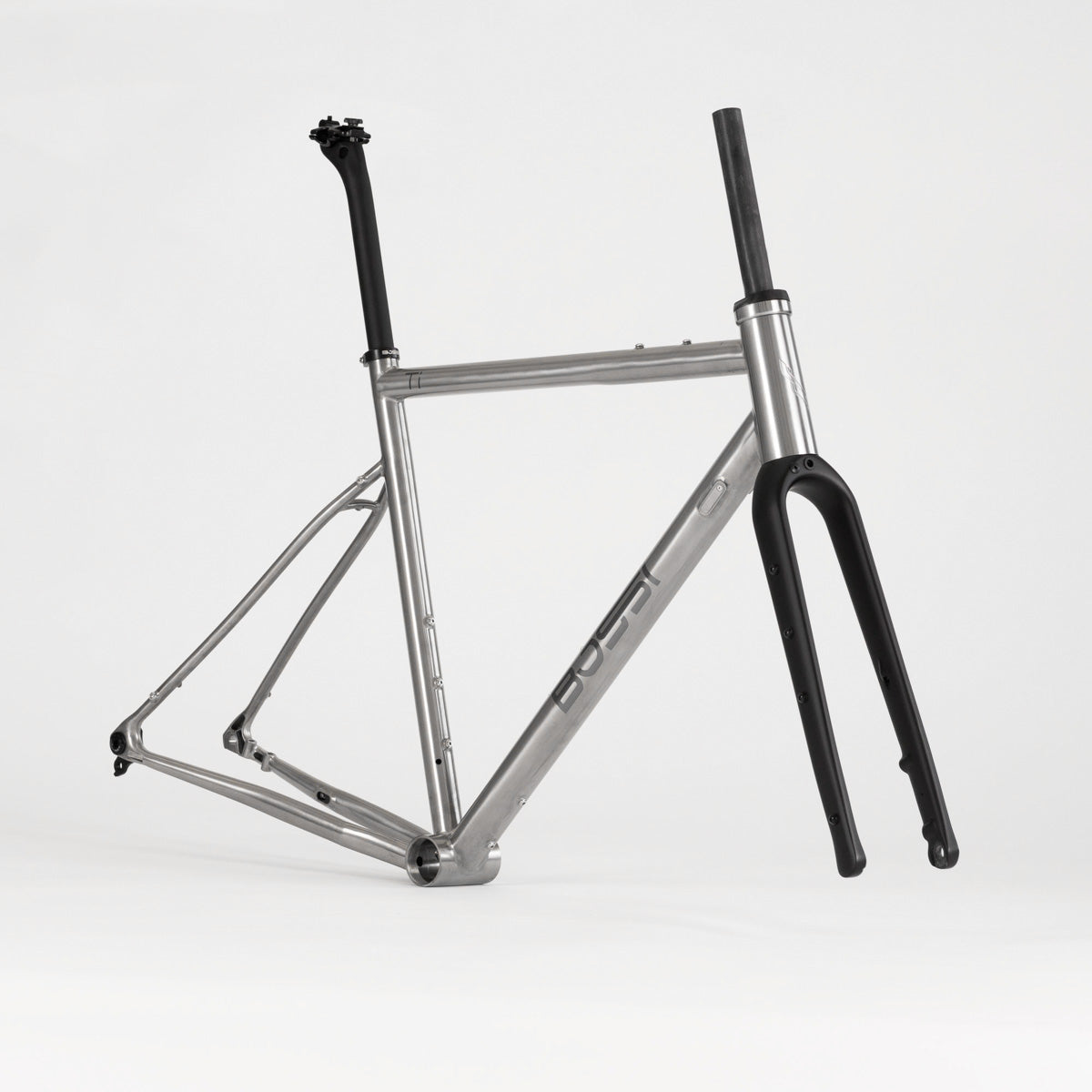

    Introducing the MY24 Bossi Grit, completely overhauling our best-selling gravel platform with plentiful frameset improvements, expanded drivetrain and build options, all with reduced weight. It’s our most flexible and adaptable frame to date, unapologetically gravel and ready for your dream build. A revolutionary titanium adventure gravel frame designed for uncompromising performance and versatility. Crafted from 3AL-2.5V titanium tubing with advanced 3D printed 6AL-4V dropouts, shedding approximately 150 grams compared to its predecessor. The redesigned hybrid tapered head tube accommodates both integrated and non-integrated cockpits, offering unprecedented customisation options. Featuring a T47 86mm bottom bracket and clearance for 50c (700c) and 2.2" (650b) tires, the Grit is built for any terrain. Universal cable entry ports simplify routing for brakes and shifters, catering to various setup preferences seamlessly. Compatibility with Universal Derailleur Hanger (UDH) and SRAM T-Type Transmission ensures versatility and ease of maintenance worldwide. The carbon gravel fork boasts triple cage mounts, fender mounts, and internal dynamo cable routing, ideal for long-distance adventures. With rack and fender mounts, additional bottle cage bosses, and provisions for dynamo hubs and cable-actuated dropper posts, the Bossi Grit is designed to go far.


    Frame features

    - Compatible with fully integrated and semi-internal routing
    - 3AL-2.5V titanium tubing

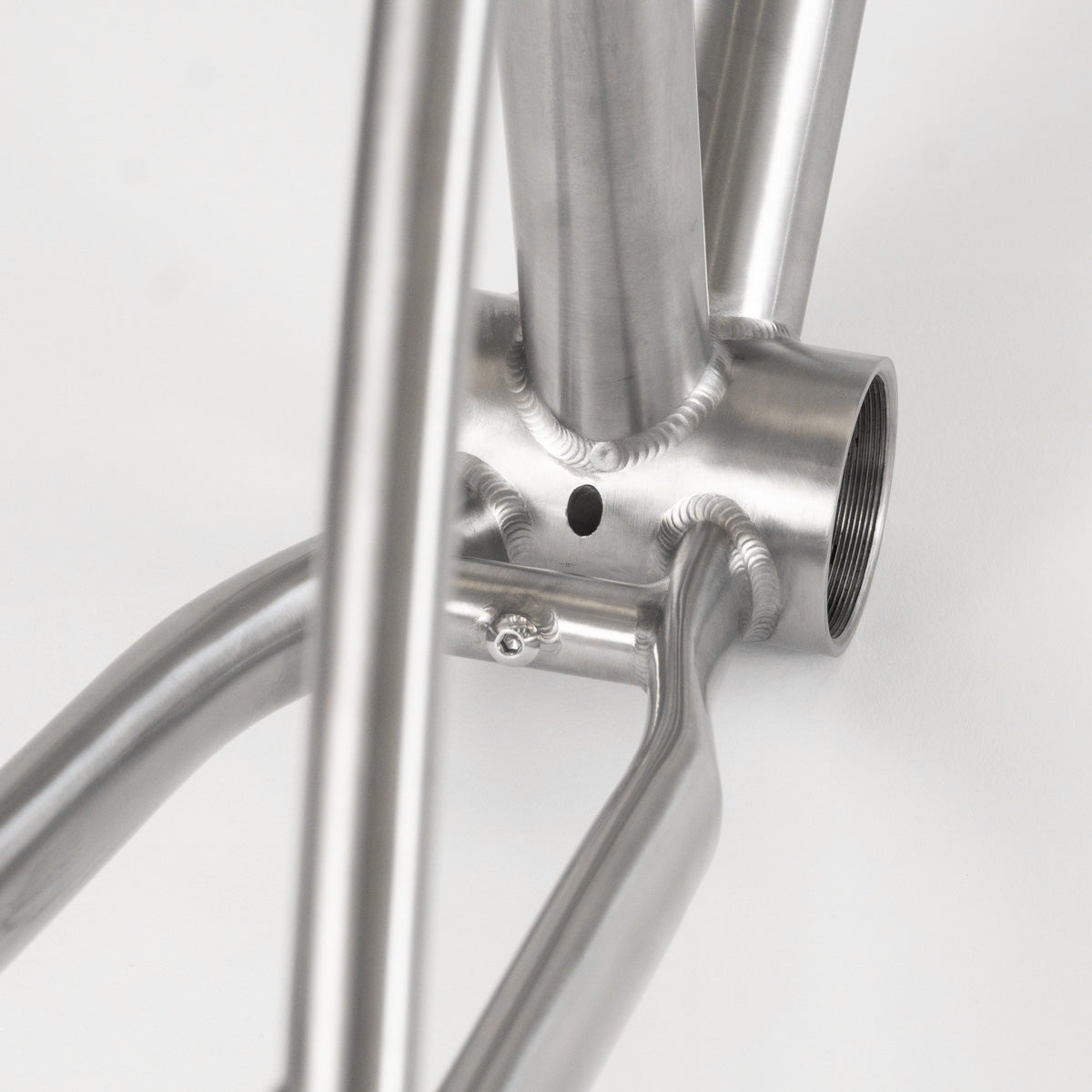

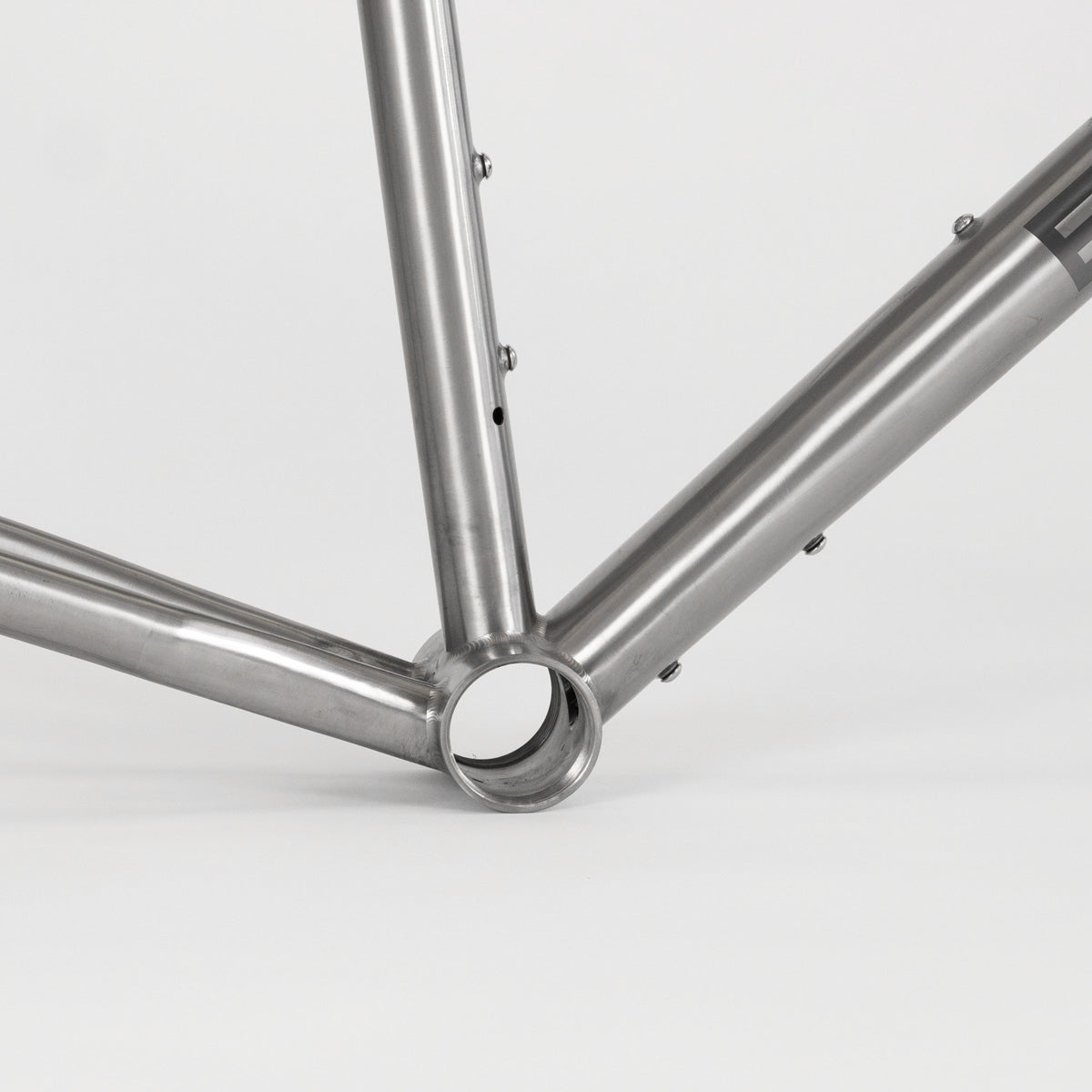

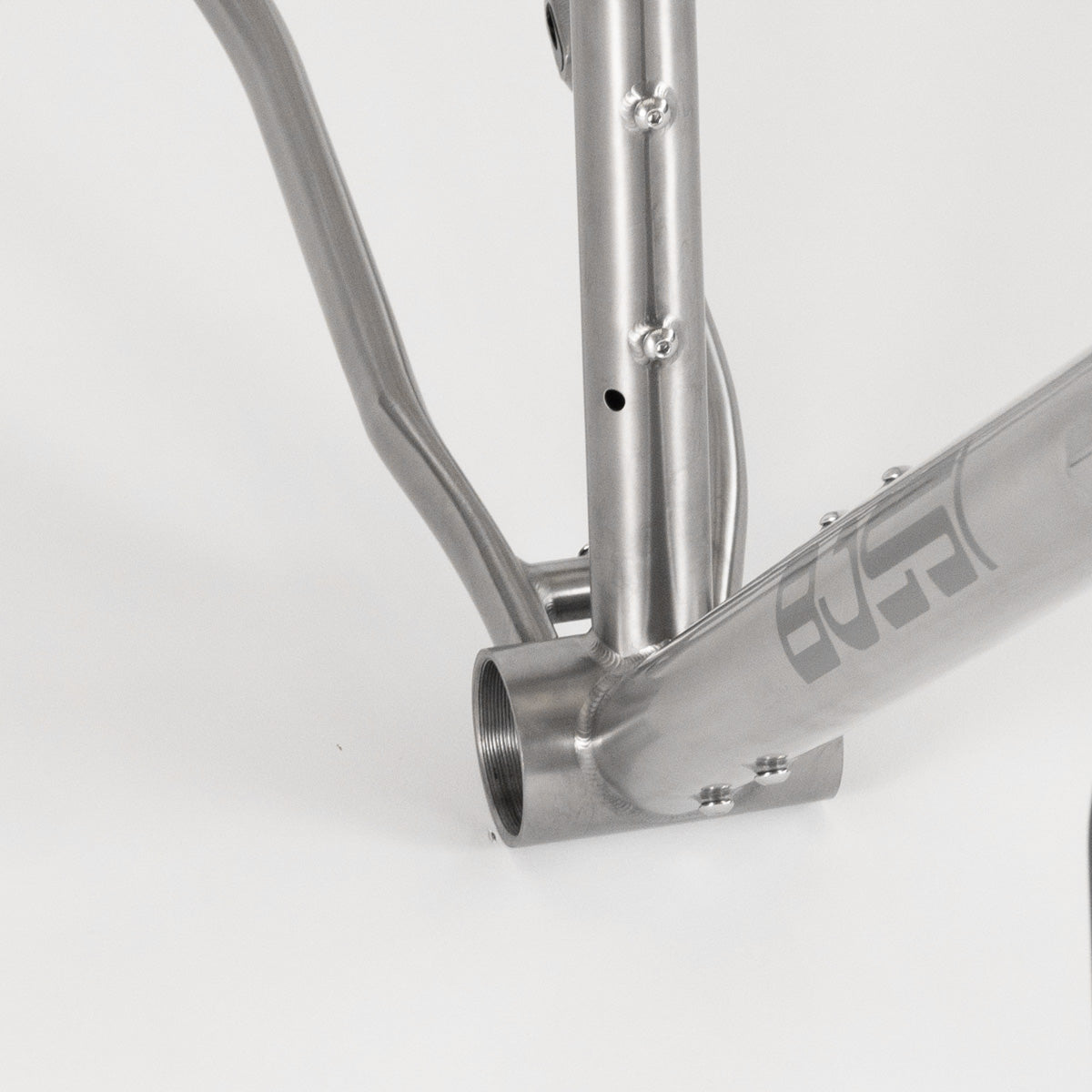

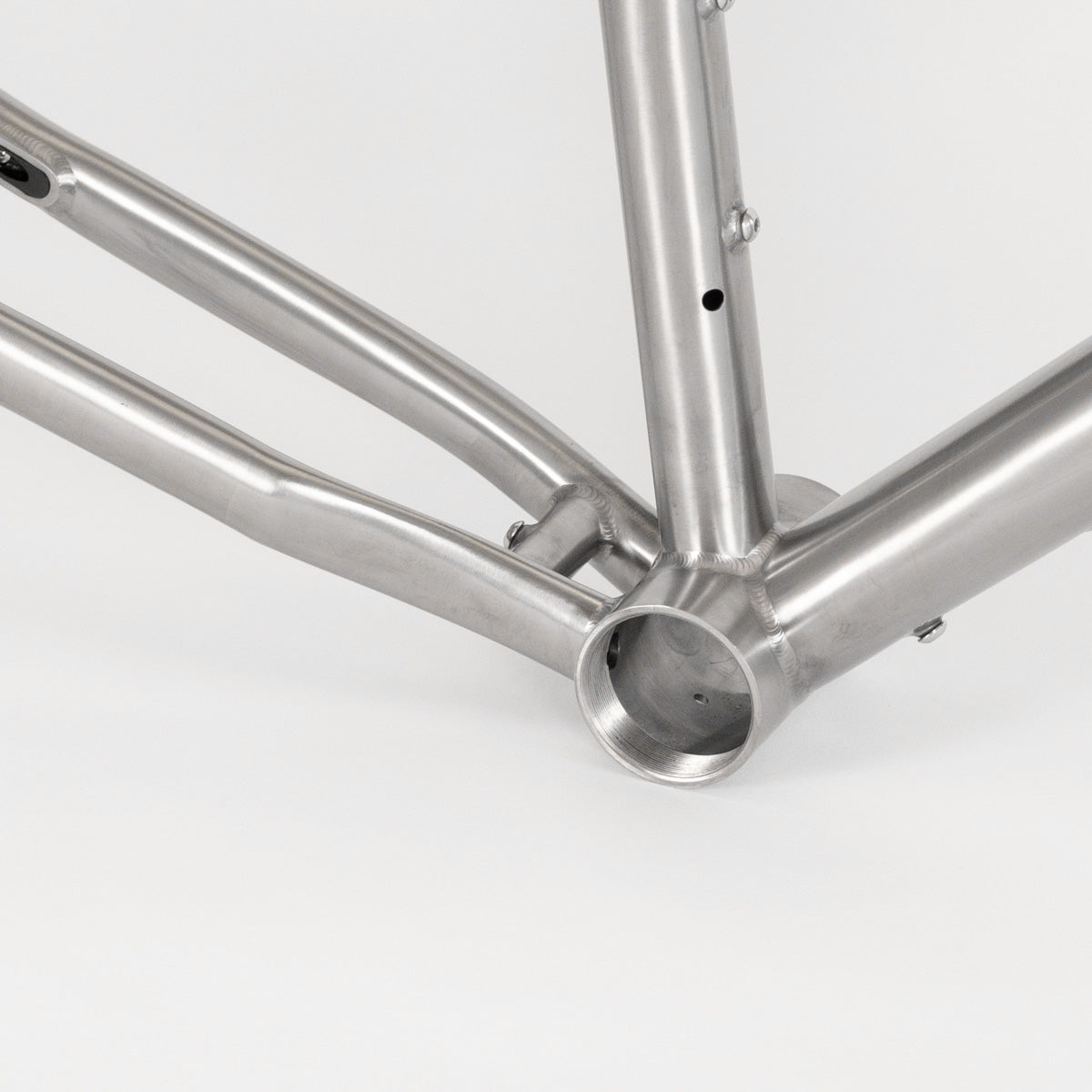

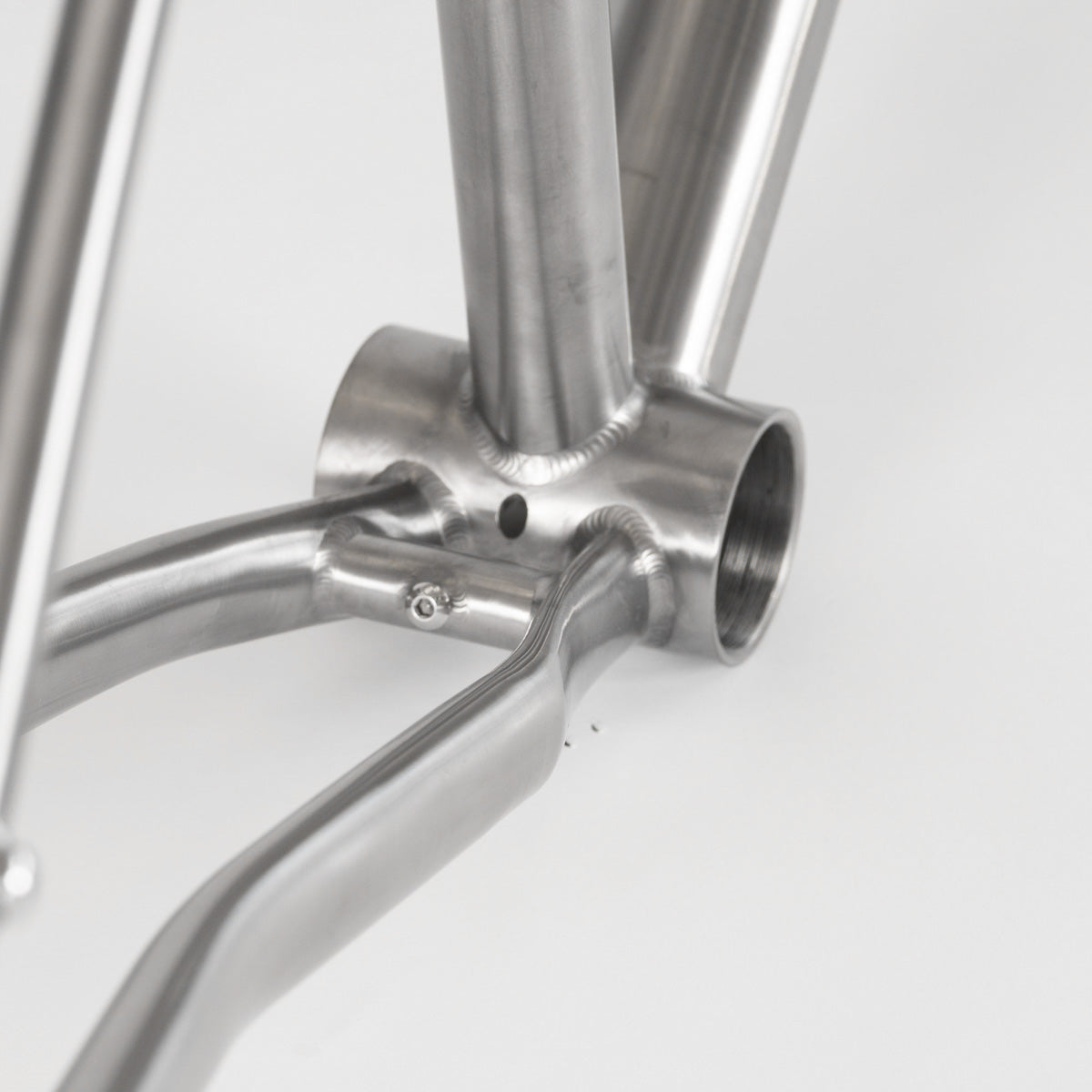

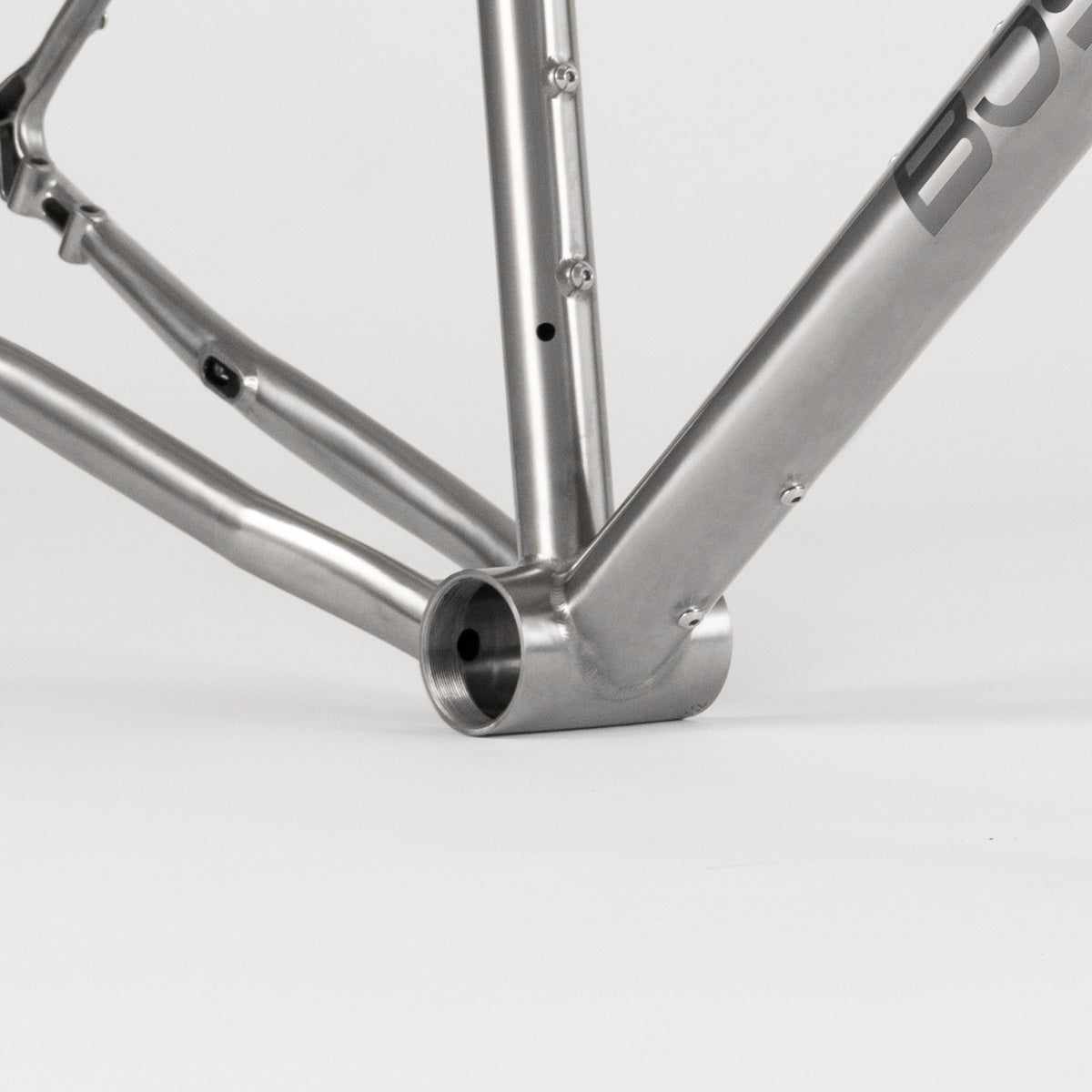

    - 6AL-4V titanium bottom bracket (T47 86mm)
    - 6AL-4V titanium head tube

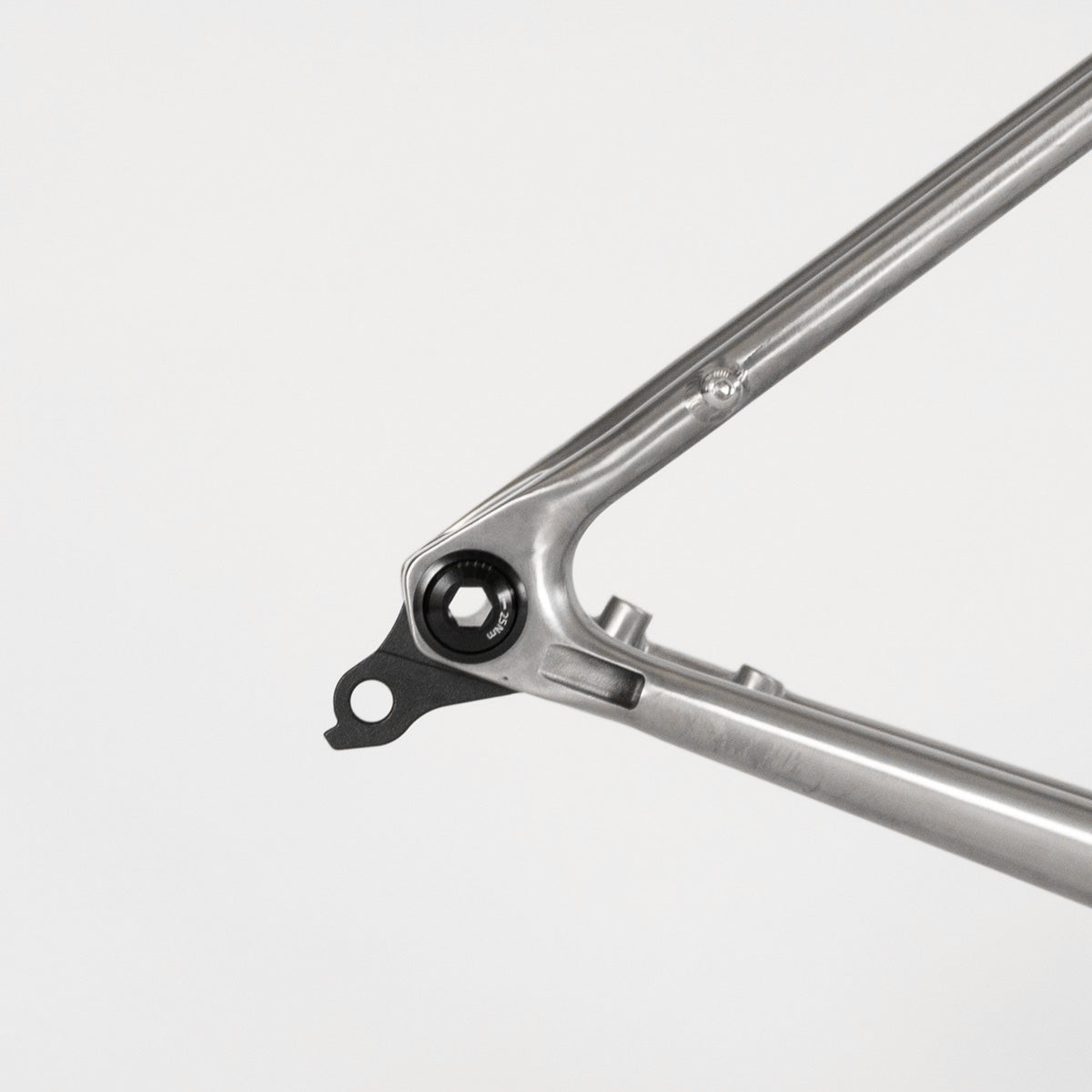

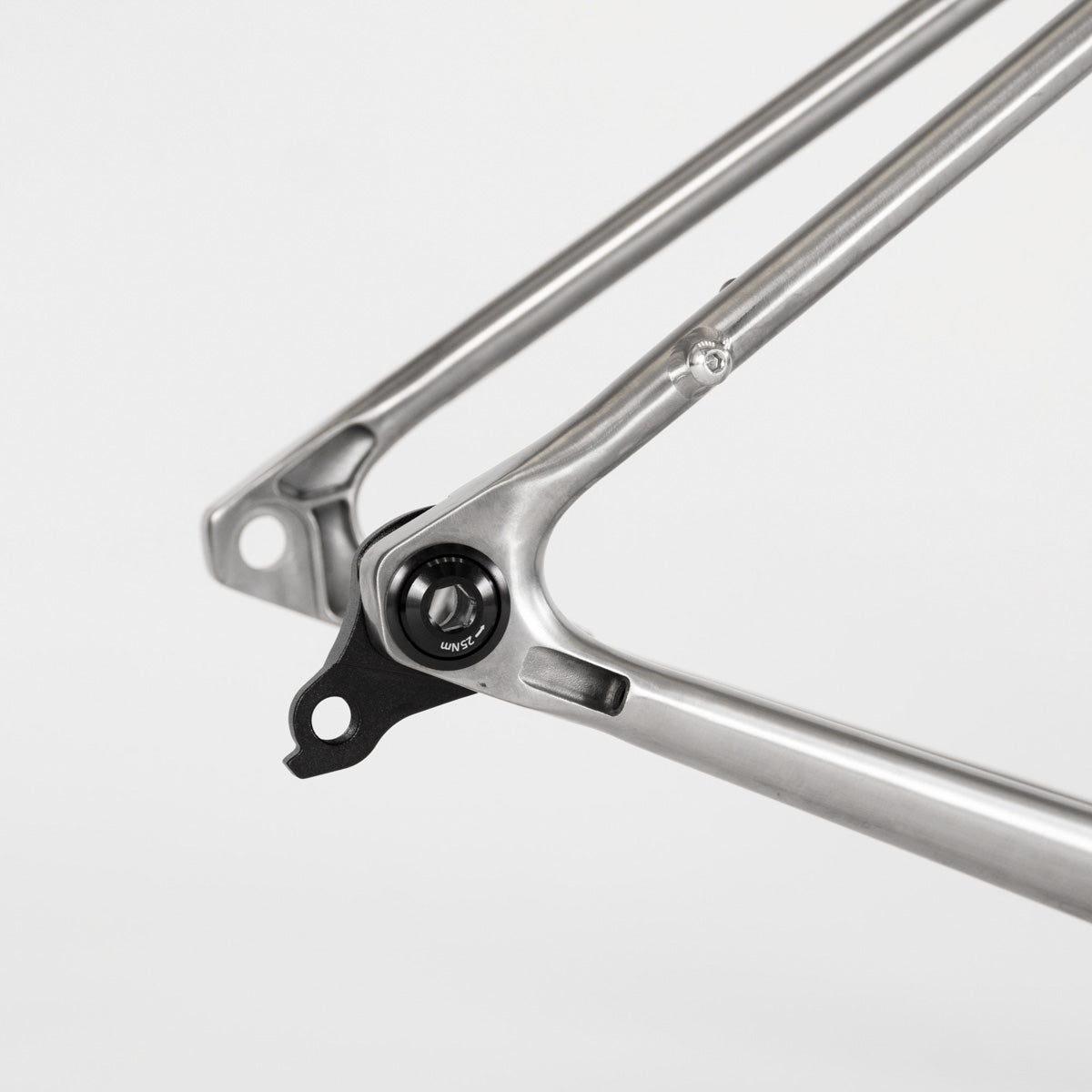

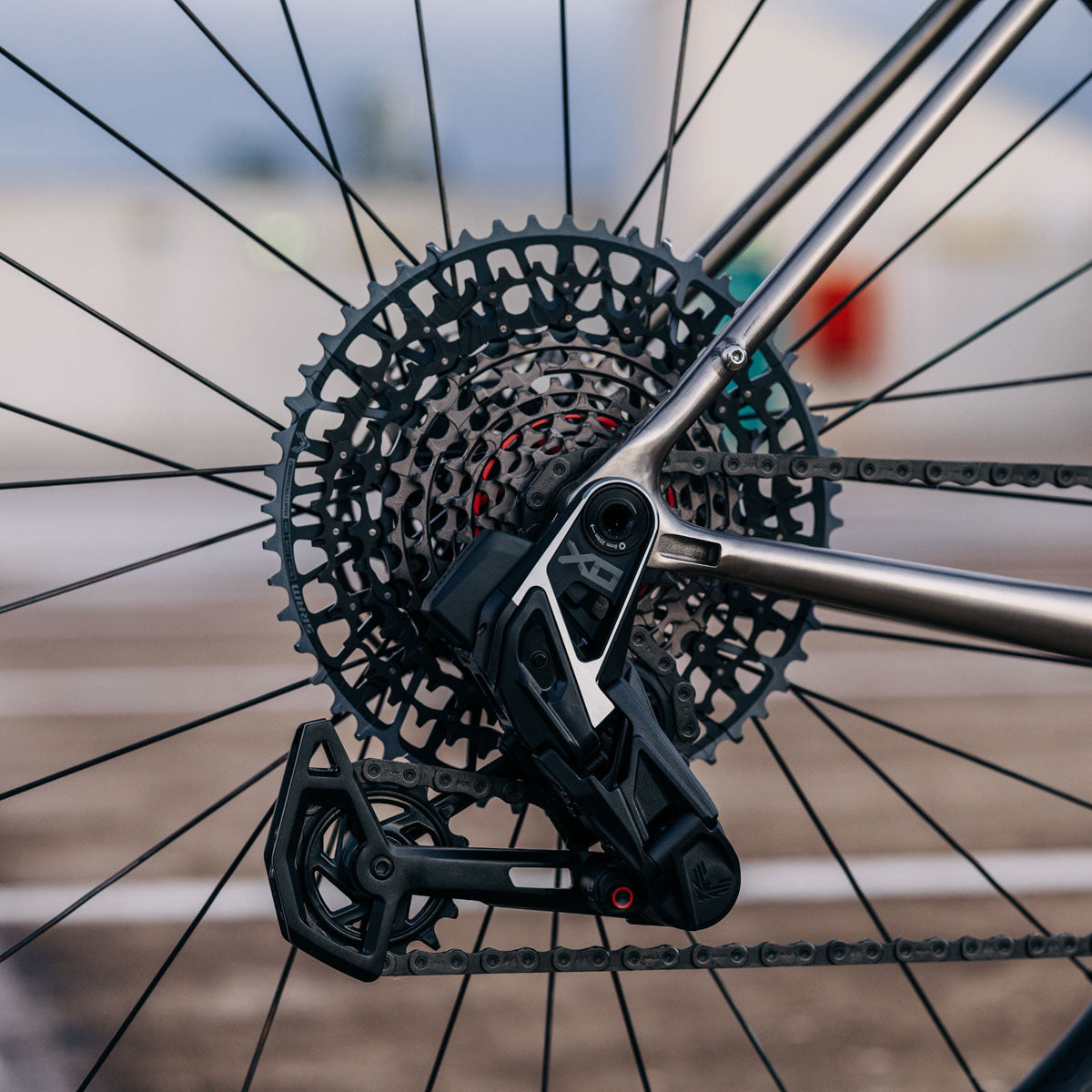

    - 6AL-4V titanium 3D printed Sram UDH dropouts

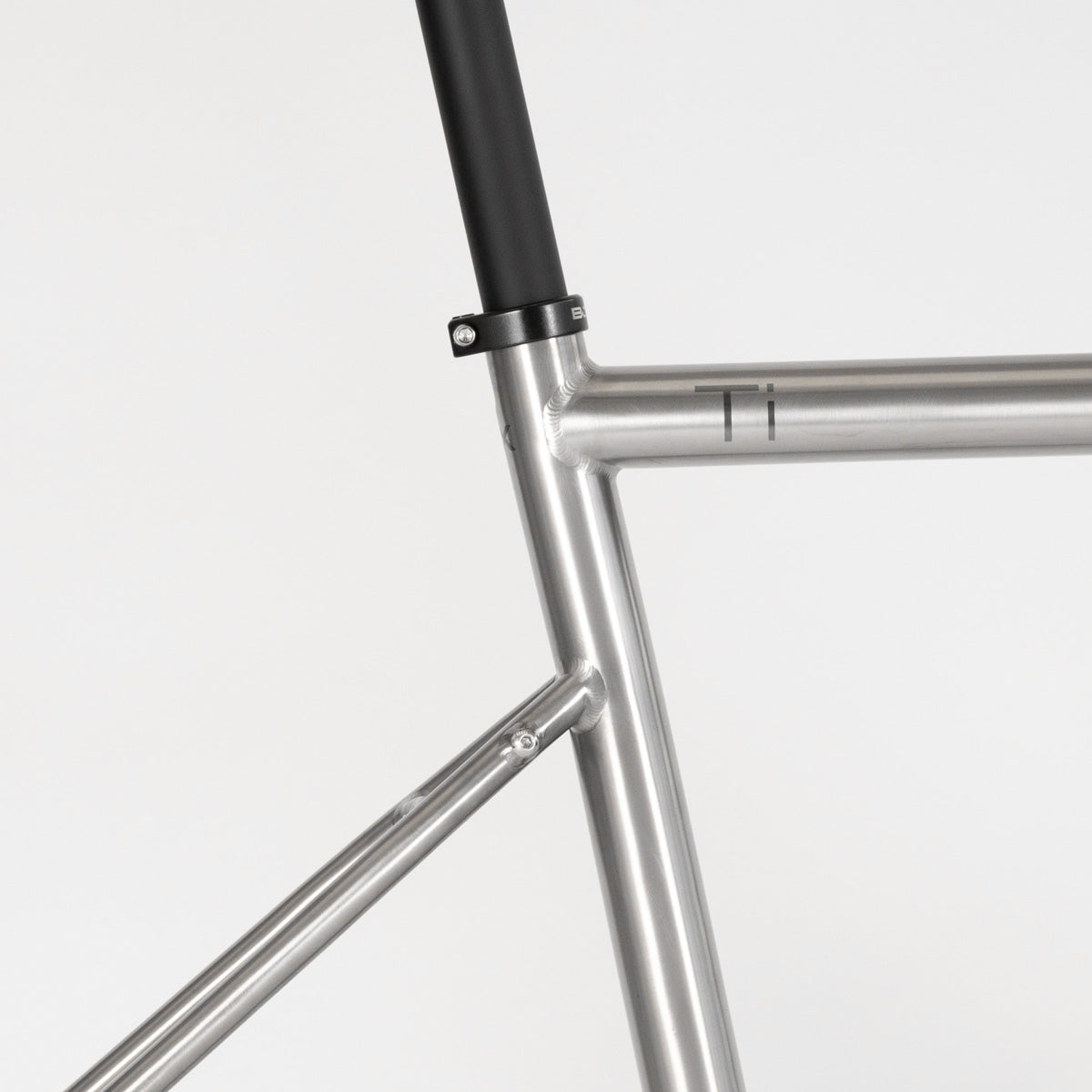

    - Butted seat post and down tube
    - Hydroformed top tube with flattened underside

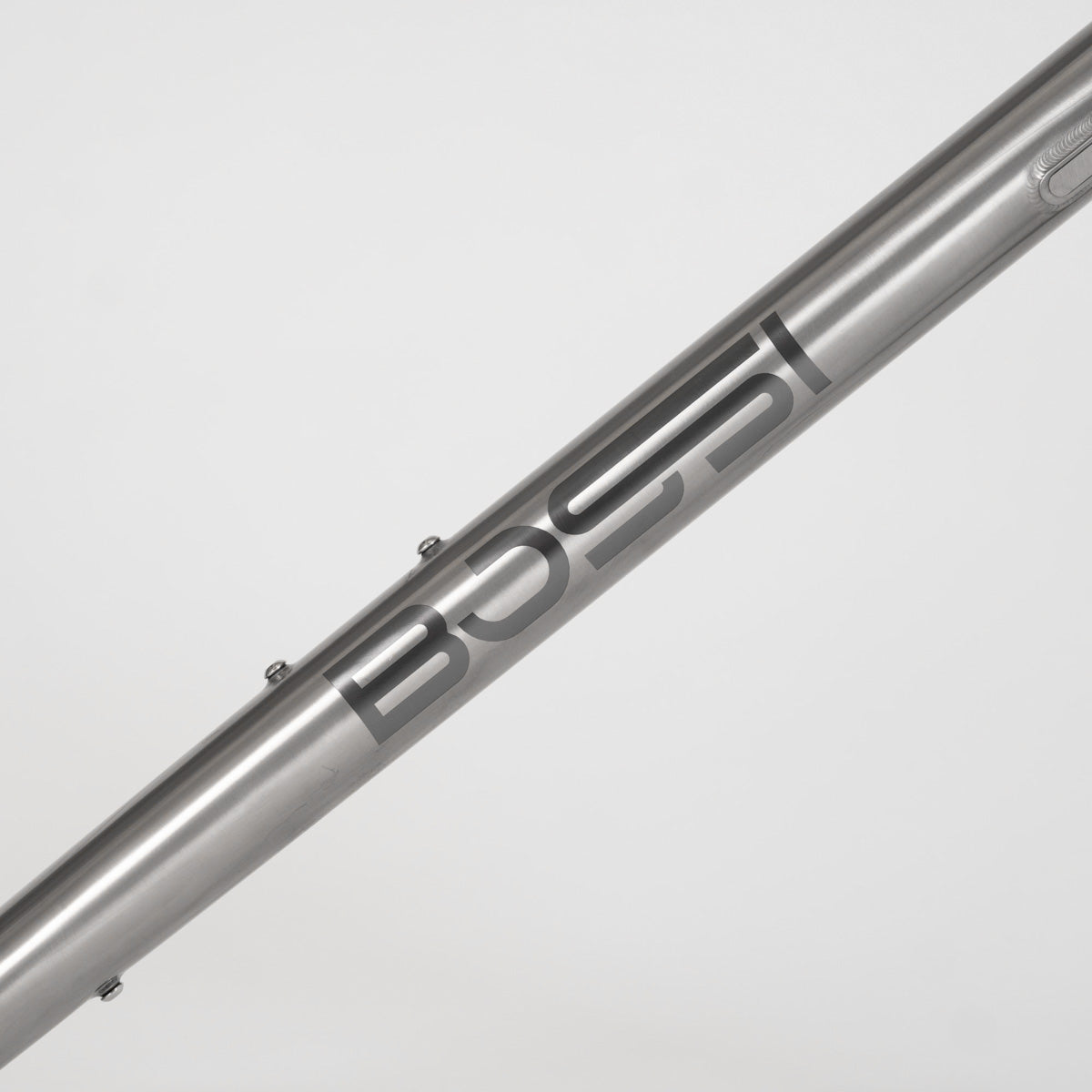

    - Hydroformed double-ovalised down tube

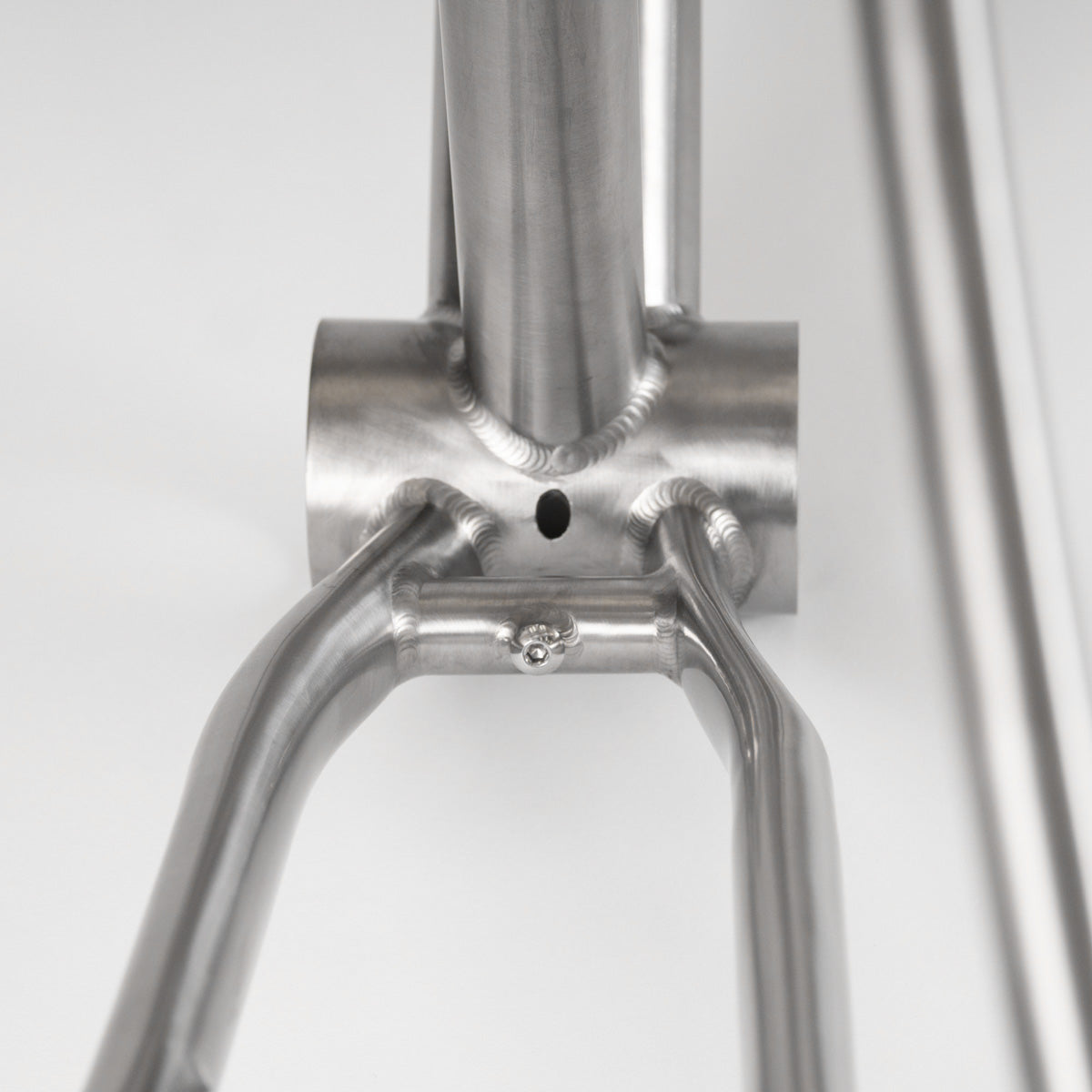

    - 3D printed chain stay yoke

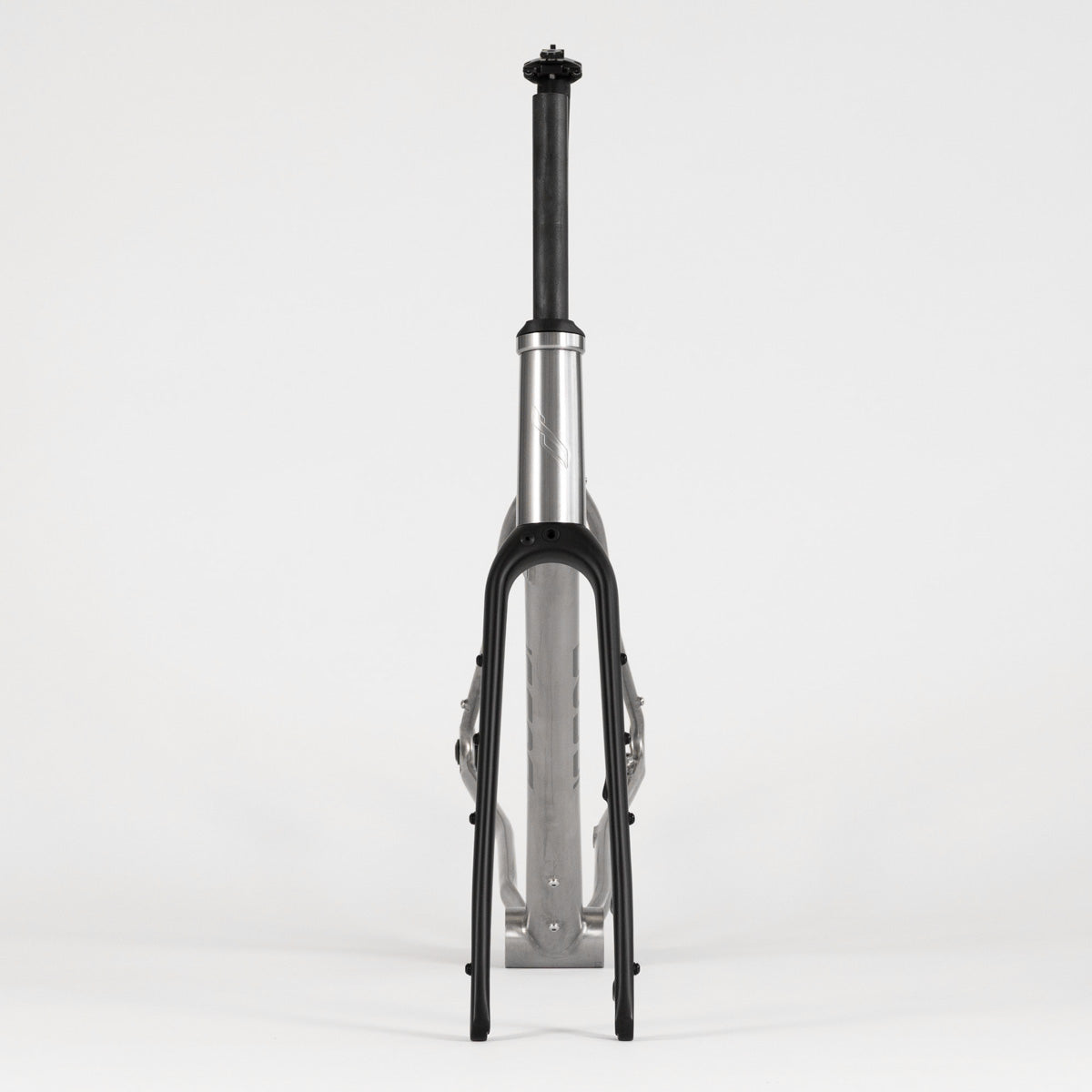

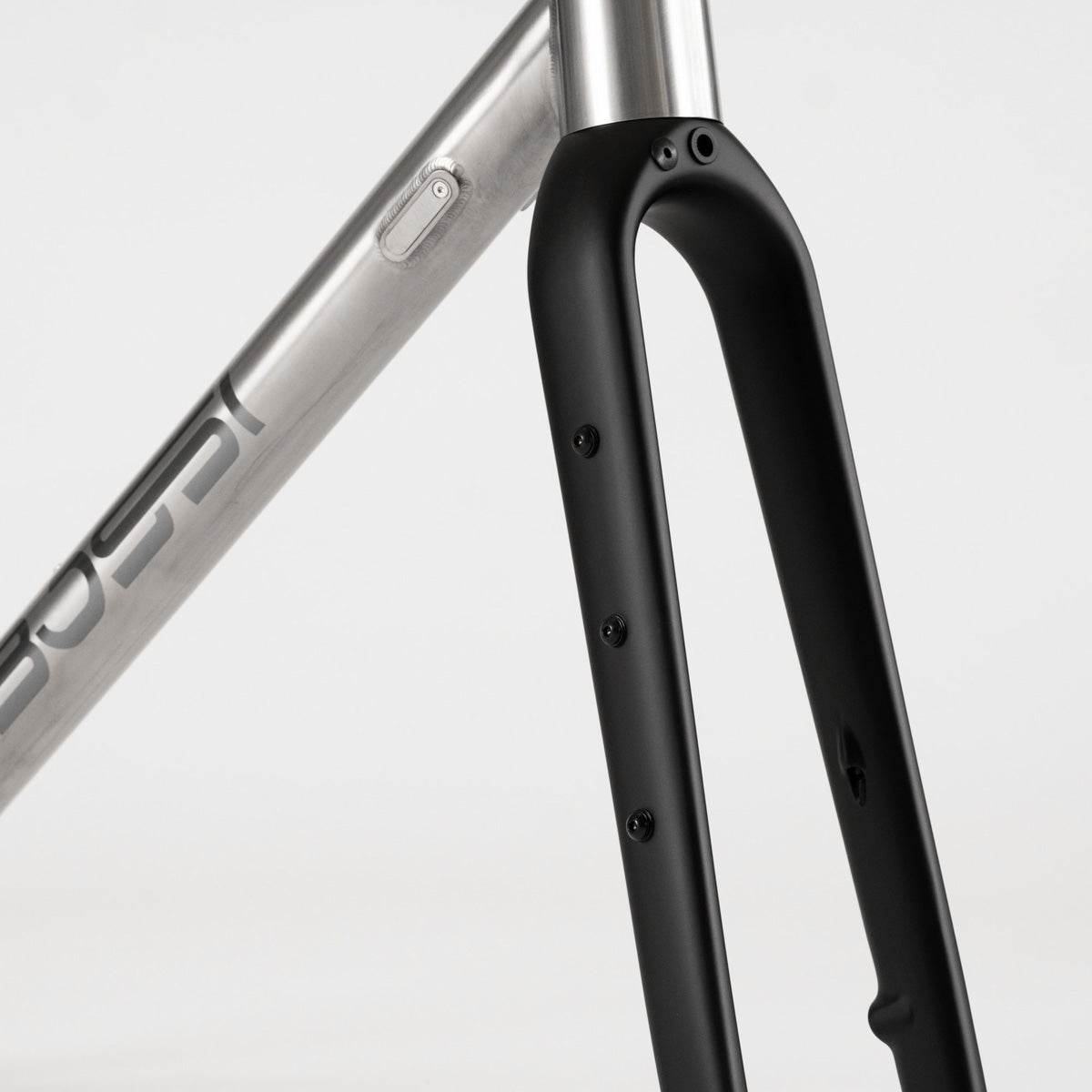

    - Toray T800 monocoque carbon flat-mount disc fork
    - 50mm fork offset
    - Double ovalised chain stays

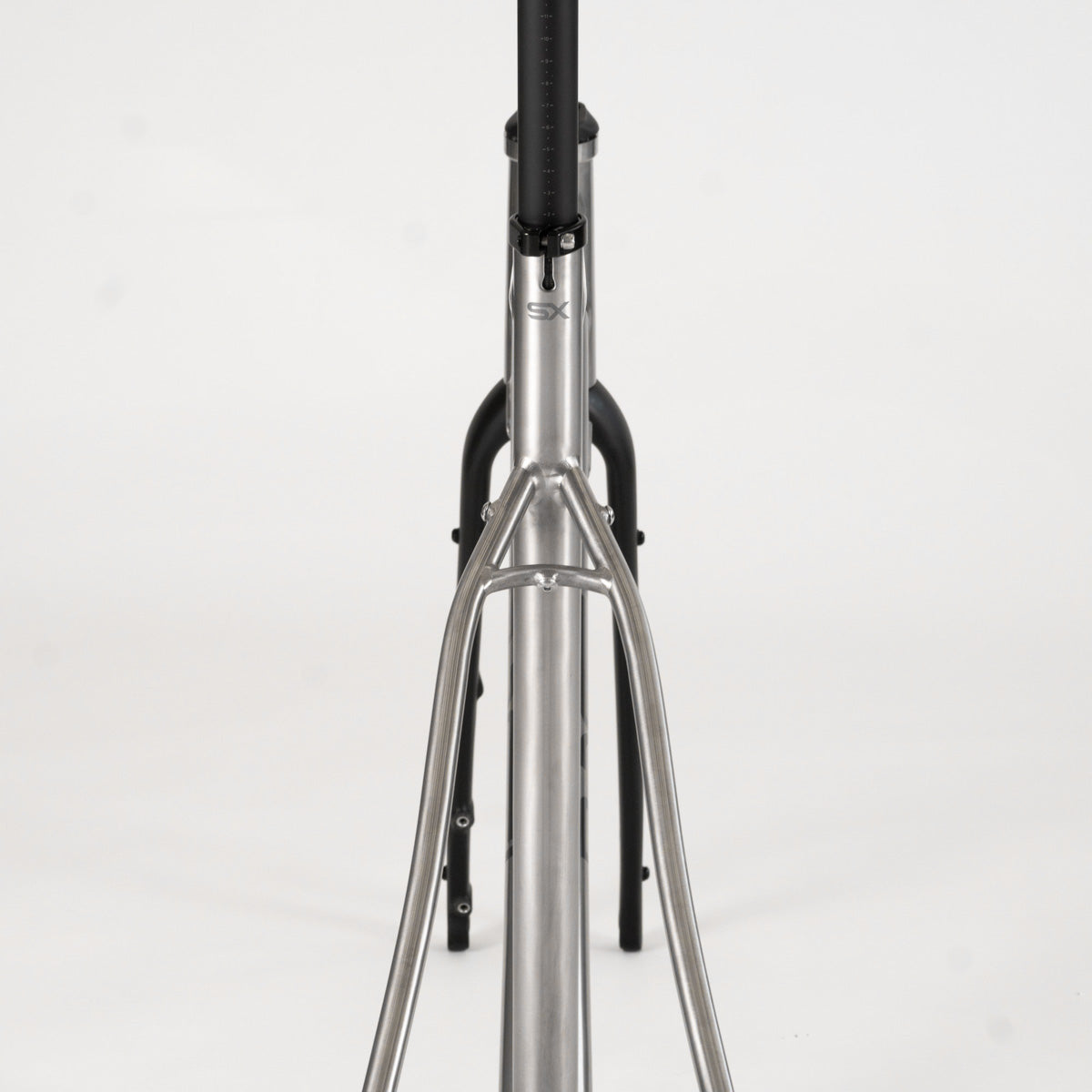

    - Tapered and lowered seat stays
    - 3 x bidon mounts
    - Clearance for 1L bidon

    - Flat mount disc brakes
    - 12 x 100mm front and 12 x 142mm rear Thru-axle

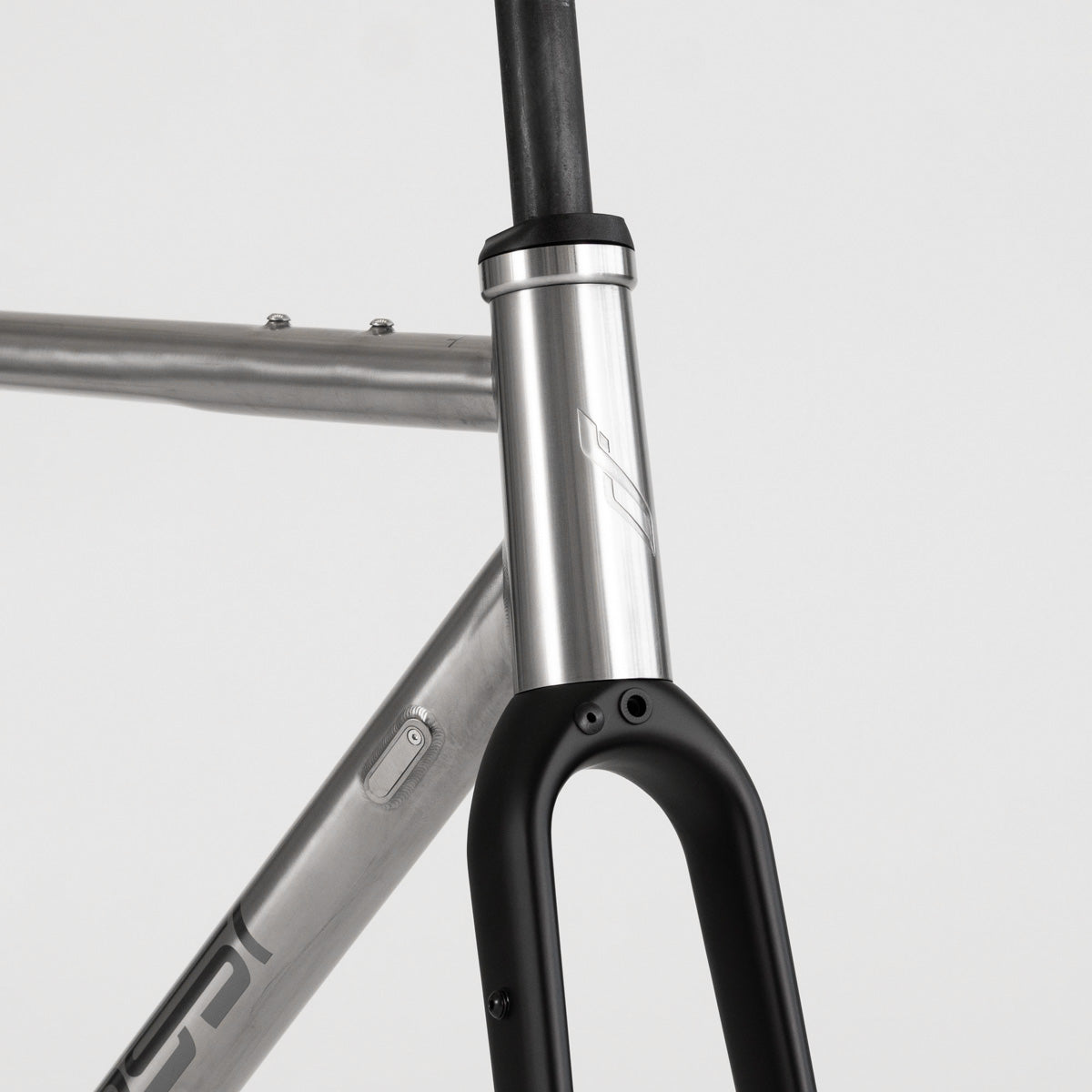

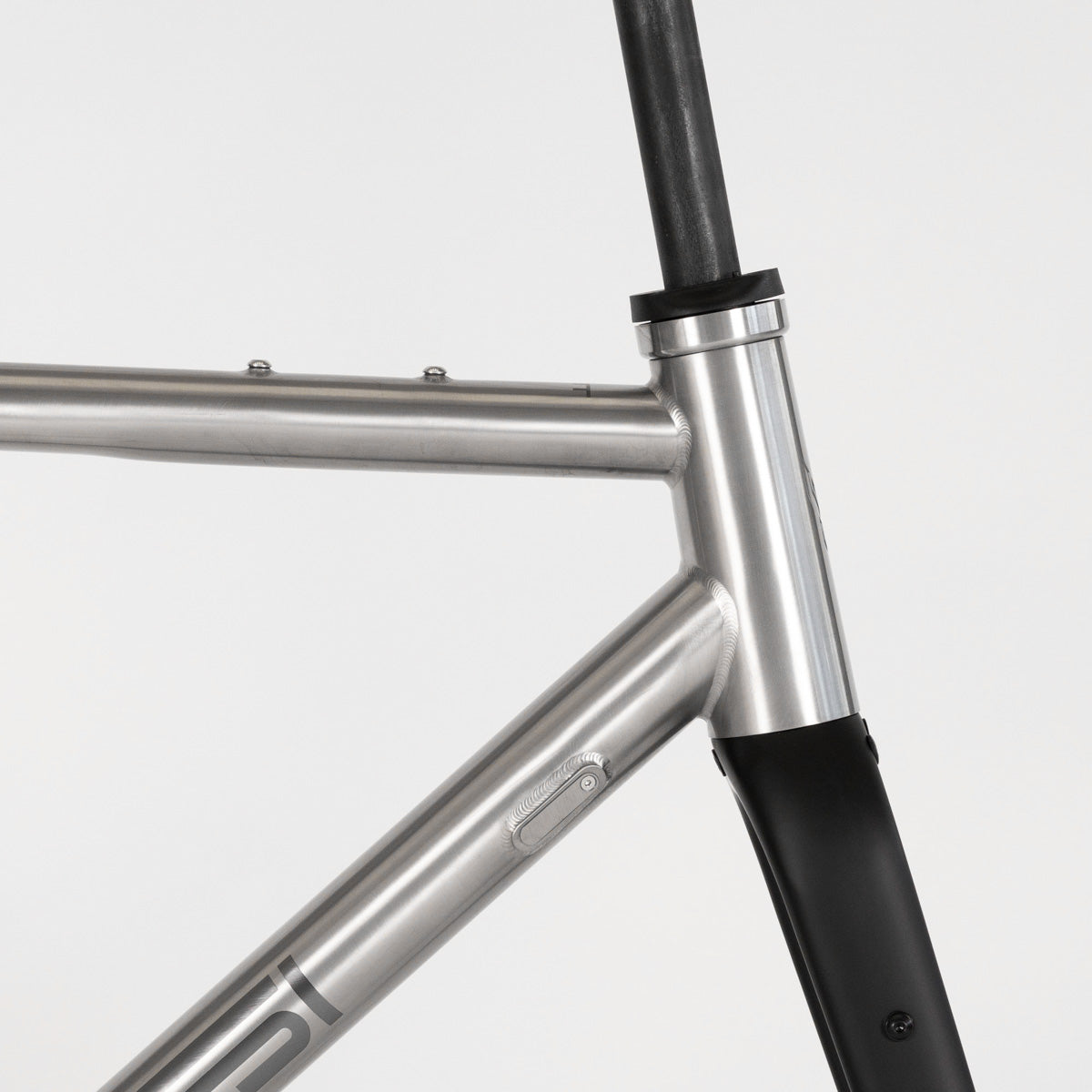

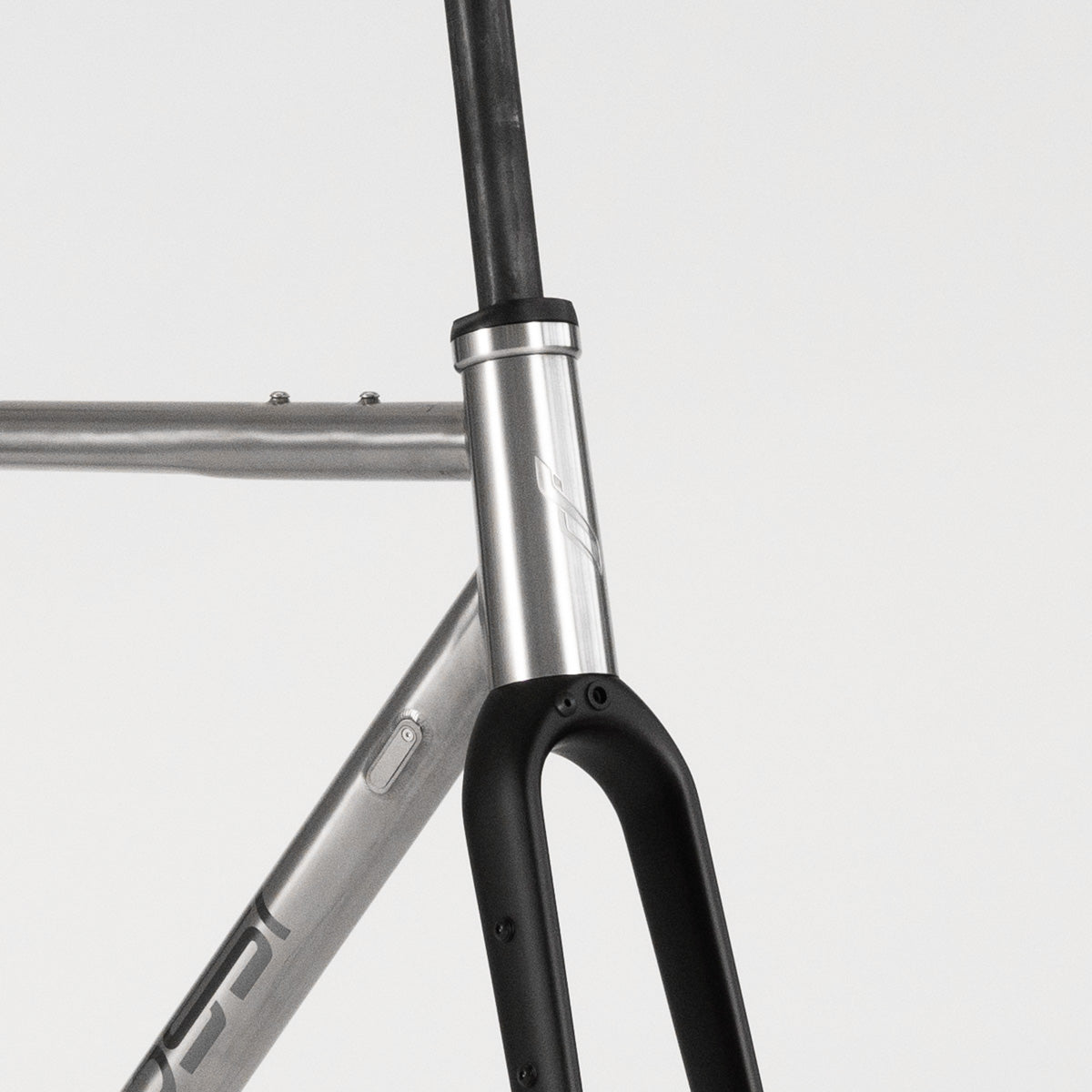

    - Tapered head tube ZS 44mm upper – 1 1/2” integrated lower
    - Mechanical / electronic groupset compatible
    - Top tube mounts
    - Internal dynamo cable routing
    - Internal cable routing
    - 27.2mm seatpos
    - Laser engraved logos
    - Pannier rack mounts on fork and seat stays
    - Full fender mounts front and rear
    - Clearance for 50c(700c) and 2.2"(650b) tyres
    - Brush Finish
    - CNC engraved headtube
    - Suitable for 700c and 650b wheelsets

    FRAMESET CONFIGURATIONS

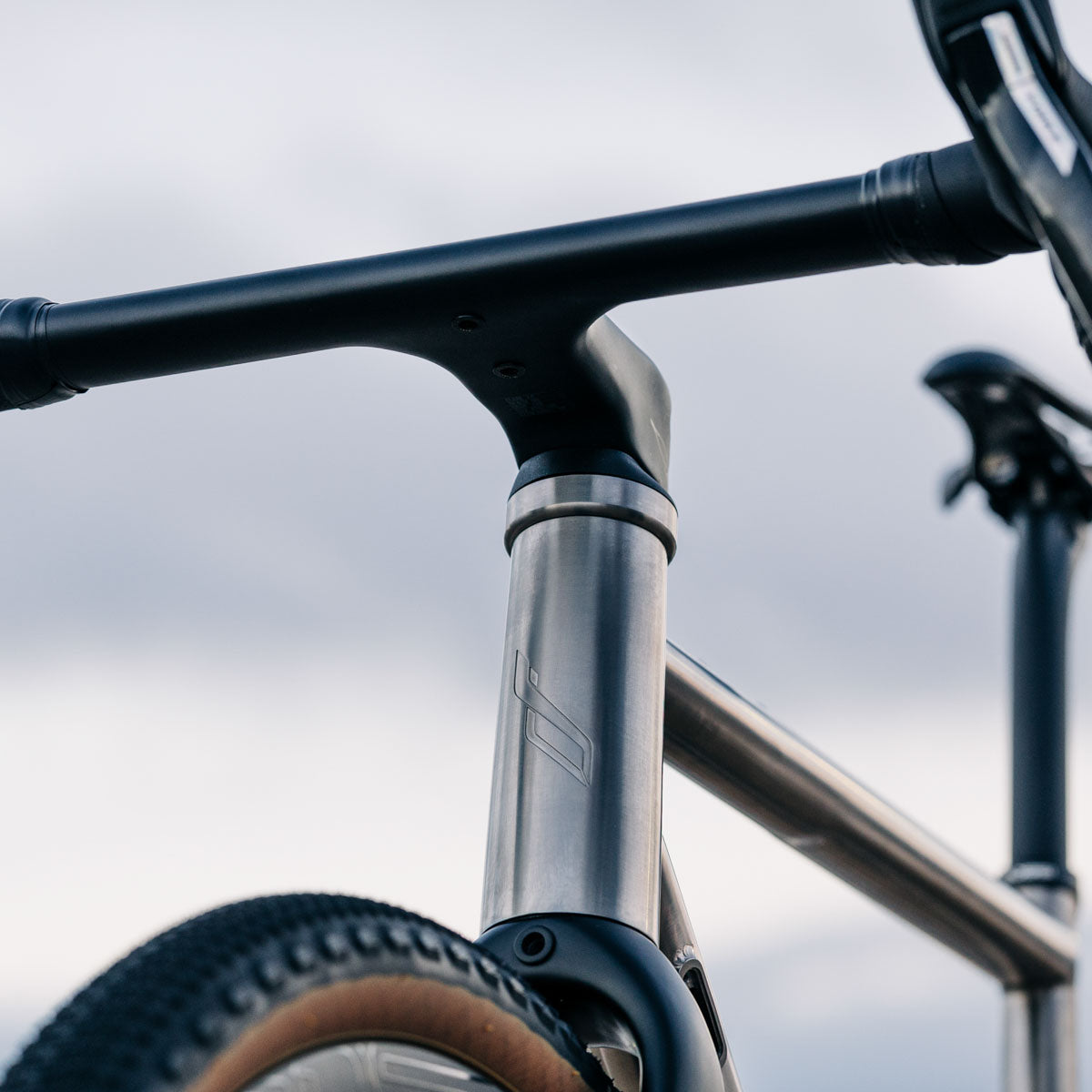

    FULLY INTEGRATED ROUTING

    Installation of a 1.5" bearing cup creates compatibility with the majority of fully integrated cockpits on the market. Cable entries are covered with titanium blanking plates

    SEMI INTERNAL ROUTING

    Installation of 1.125" bearing cup allows for conventional cable routing leading to easier maintenance and packing when travelling.


    Geometry

    Book Your Free Consultation

    The build options outlined above serve to provide estimated costs only. We have access to a diverse selection of groupset and components. If you don't find the exact build you're looking for, feel free to reach out, and we'll be happy to provide a tailored quote. Whether you're seeking guidance on your custom build or have questions about our designs, use the link below to schedule a consultation. We're here to address all your inquiries.
